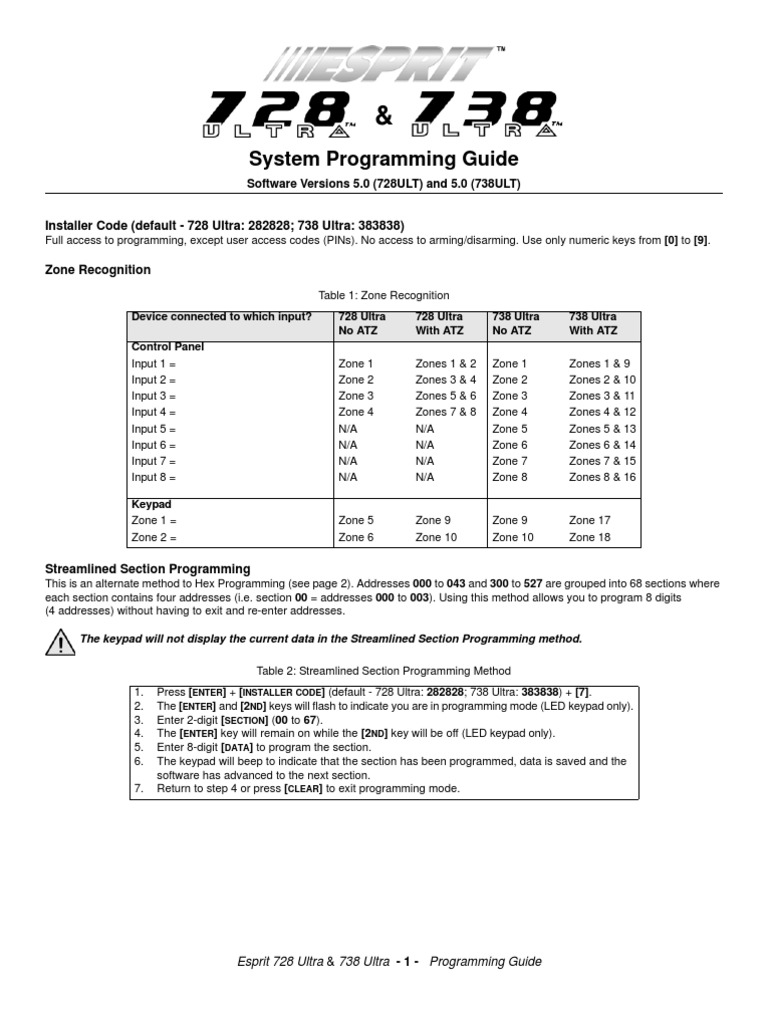

. The keypad will beep to indicate that the section has been programmed, data is saved and the software has advanced to the next section. Return to step 4 or press to exit programming mode. CLEAR Esprit 728 Ultra & 738 Ultra - 1 - Programming Guide. = First digit = 4 + 2 + 1 = 7 Therefore 2-digit data = 7A Note: Values 10 to 15 represent hex digits A to F respectively. See keypad to the left. Esprit 728 Ultra & 738 Ultra - 2 - Programming Guide.

1. Motorola Droid Ultra Manual

Esprit 728 Express Manual Esprit 728 Ultra & 738 Ultra - 1 - Programming Guide The Ademco Express, Ademco Contact ID and the Pager report formats only Refer to the. Paradox Esprit 738 Ultra Pdf User Manuals. View online or download Paradox Esprit 738 Ultra Programming Manual.

The Standard Pulse report format can support 3- or 4-digit account numbers. The Ademco Express, Ademco Contact ID and the Pager report formats only support 4- digit account numbers. Esprit 728 Ultra & 738 Ultra - 3 - Programming Guide. 4 / 2 EMPERATURE TRBL ANUAL 159: 2 / 2 602: 4 / 1 EMPERATURE ERIODIC 161: 2 / 1 625: 4 / 2 ESET 654: 4 / 3 YSTEM NACTIVITY Esprit 728 Ultra & 738 Ultra - 4 - Programming Guide. / User Code 10 / User Code 3 / User Code 11 / User Code 4 / User Code 12 Esprit 728 Ultra & 738 Ultra - 5 - Programming Guide. ) only when ATZ is enabled (address 090, key 8).

Applies only to 728 Ultra. † = Zones 1 to 10 for the 728 Ultra and Zones 1 to 18 for the 738 Ultra Esprit 728 Ultra & 738 Ultra - 6 - Programming Guide. / Login (Espload) / No movement / Program Change / Partial Arming Future Use / Recent Close Future Use Esprit 728 Ultra & 738 Ultra - 7 - Programming Guide. Add the values of the lit keys to obtain the entered data value as shown in the example below right.

Example: Therefore 8 + 1 + 32 + 16 = 057 Note: LCD keypads will display current data on the screen. Esprit 728 Ultra & 738 Ultra - 8 - Programming Guide. Table 9: Code Priority for Codes with Bypass Access KEY SELECT: 2 AWAY TRBL 0 STAY FORCE User #: 074: User #: 17 076: User #: 33 078: Esprit 728 Ultra & 738 Ultra - 9 - Programming Guide. Keypad zone 1 supervision Enabled STAY Keypad zone 2 supervision Enabled AWAY FORCE Master code lock Enabled Pager format (wait delay) Personal dialing (during delay) Pager report alarms only All events TRBL Esprit 728 Ultra & 738 Ultra - 10 - Programming Guide. “modem setup” section and panel phone number programmed.

Cancel Communication Attempts Master Code/User Code 1 only cancel calls to Espload STAY The Installer Code can cancel all communications Until next reportable event. Esprit 728 Ultra & 738 Ultra - 11 - Programming Guide. Fault Recognition (UL/cUL) Address 088= “OFF” (EOL resistor enabled) 0 = (See Tamper/Wire Fault definitions on = page 10.) STAY Address 090, 8 = “OFF” (ATZ disabled) Esprit 728 Ultra & 738 Ultra - 12 - Programming Guide. Address 090, 8 = “ON” (ATZ enabled) Address 090,8 = “ON” (ATZ enabled) 7 = “ON” (ATZ wiring in parallel) 7 = “OFF” (ATZ wiring in serial) Other Connection Diagrams Figure 12: Connecting Keypad Zone(s) Esprit 728 Ultra & 738 Ultra - 13 - Programming Guide. Both the 728 Ultra and the 738 Ultra control panels support a maximum of five 2-wire smoke detectors per control panel.

It is recommended that the smoke detectors be connected using a daisy chain configuration. Esprit 728 Ultra & 738 Ultra - 14 - Programming Guide. Installation Manual” for the current consumption table.

Refer to Figure 12 on page 13 for information on keypad zone connections. Output BELL Bell/Siren will shut down if the current exceeds 3A. Esprit 728 Ultra & 738 Ultra - 15 - Programming Guide. Installation Manual” for the current consumption table.

Refer to Figure 12 on page 13 for information on keypad zone connections. Output BELL will shut down if the current exceeds 3A. Bell/Siren Esprit 728 Ultra & 738 Ultra - 16 - Programming Guide. Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded. PRINTED IN CANADA - 07/2007 7X8ULT-EP04.

. LISTED Installation Manual VERSION 2.20 IM728-738 9. IM728-738 Requirements and guidelines for U.L. INSTALLATIONS UL listed in accordance with standard UL1023 (Household Burglar - Alarm System Units), standard UL985 (Household Fire Warning Units) and UL1635 (Digital Alarm Communicator System Units). UL has only evaluated the 718, 728L, 728, 728 EXPRESS, 738, 738 EXPRESS and 748 for compatibility with the Ademco model 685, FBI model CP220FB, SUR-GUARD SG-MLR2-D6 and Silent Knight model 9000. IM728 -738 TABLE OF CONTENTS REQUIREMENTS/GUIDELINES FOR UL, ULC AND AUSTELINSTALLATIONS INTRODUCTION.ABOUT THIS MANUAL. IM728 -738 TABLE OF CONTENTS (continued) Telephone and Account Numbers.Computer telephone number.Central station telephone numbers.

IM728 -738 TABLE OF CONTENTS (continued) Delay 2.Bypass-enabled. We hope that the important features of the Esprit 728 and Esprit 738, which include a 120-event, PC- uploadable event buffer and high-speed pre-programmed communicator formats, will simplify your task of supplying quality security service to your customers. IM728-738 Programmable Outputs Almost any control panel status situation may be used to activate the Esprit’s programmable outputs.

Once a panel status mode is selected for a PGM to follow, the polarity and duration of the output may also be programmed. 18 supplementary programmable outputs are available with the SRI18 module, which connects to the panel’s serial output. IM728-738 Digital Communicator: Compatible with most worldwide telecommunication standards. Reporting formats: Pulse: Ademco slow (10BPS), Silent Knight fast, Sescoa (20 BPS) Radionics, Radionics with parity (40 BPS), 1400Hz - 1800Hz (10 BPS) DTMF: Contact ID, Ademco Express, “No handshake” DTMF format.

(Pager) True Dial tone detection and telephone line monitoring. IM728-738 EARTH GROUND The earth terminal should be connected to the cabinet and grounding rod as per local electrical codes.

Use a 16.5VAC (50-60 Hz) transformer with a minimum 40VA rat- ing to provide sufficient AC power. Do not utilize any switch-con- trolled outlets to power the transformer.

IM728-738 KEYPAD CONNECTIONS Panel/keypad connection: The four keypad connections labeled 'red', 'black', 'green' and 'yellow' should be connected to the corresponding colour terminals on the control panel PC board. Keypad zone connection: The two connections labeled 'zone' and 'com' are used to connect a zone to the keypad.

IM728-738 SINGLE ZONE connection with a 1K EOL resistor (N.C. Contacts) address 208, key = 'off' (default) key 10 = 'off ' (default) key 11 = 'off ' (default) SINGLE ZONE connection with a 1K EOL resistor, tamper recognition (N.C. IM728-738 Exception: When the zone definition is '24 hour', the tamper definition follows the audible/silent alarm arm definition of the '24 hour' zone. Tamper recognition addresses: Tamper report and restoration codes should be programmed at addresses 191 and 180.

FIRE CIRCUIT The fire zone (enabled by defining zone 3 as '24 hour') should always be connected with a 1K EOL resistor (PN201100200-PRT on UL systems). IM728-738 Panel Programming Methods To conduct panel programming, use the keypad or initiate communication with Espload (see page 11). Use of Espload is highly recommended, as it greatly reduces the potential for data entry errors during programming. For Keypad Programming instruction, refer to 'Programming Guide'. Battery Hook-Up (required on UL/ULC installations) Use a 12VDC 7AH rechargeable acid/lead or gel cell battery. IM728-738 Panel Answer Options: (Address 000) DIRECT ADDRESS The first digit entered disables the “Answering Machine Override” (key 2 or key 1), or determines the period of time between first and second call.

The second digit entered determines the number of rings required before the panel will answer. If is entered, the panel will not answer. IM728-738 Telephone and Account Numbers Three telephone numbers can be programmed: a PC telephone number and two central station numbers.

Each number can contain a maximum of 16 digits. Special instructions can be entered in the telephone numbers using the following keys: 10 = the number '0'.
